Cardioline ECG 100L Touchscreen With Glasgow Interpretation w/ 3-year warranty

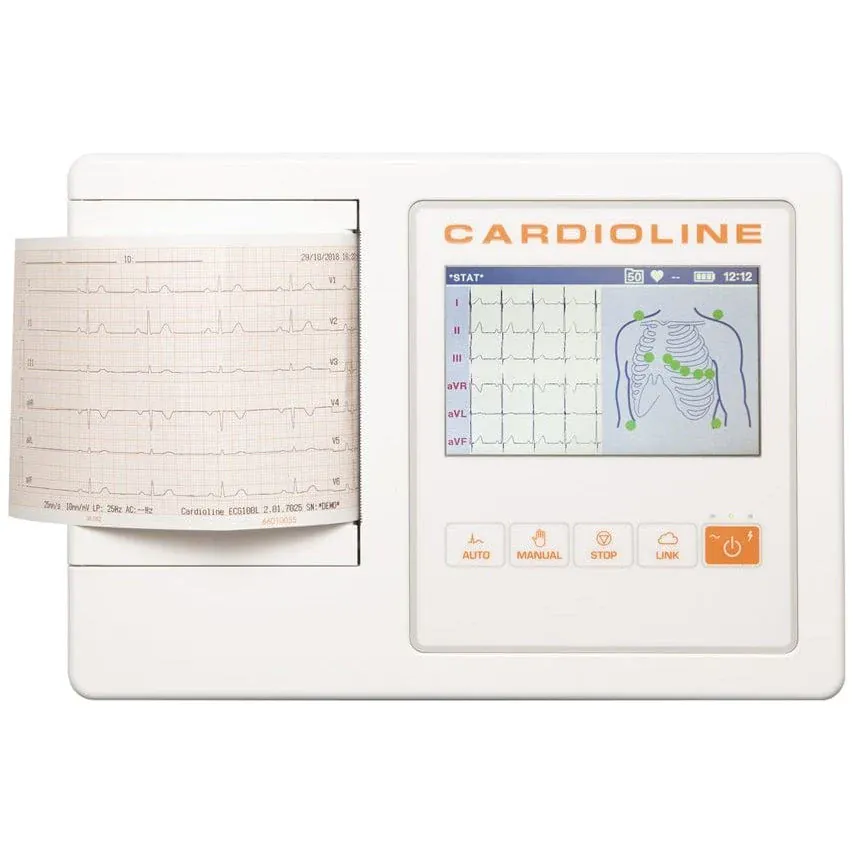

Cardioline ECG 100L Electrocardiograph

The Cardioline ECG 100L Electrocardiograph is designed for total portability and ease of use, maintaining the high-quality standards of Cardioline. Featuring a 5-inch color touch screen display, this device offers a user-friendly interface and advanced ECG interpretation with the Glasgow University program. This program provides accurate ECG analysis considering patient-specific criteria such as age, sex, and race, ensuring reliable results that require physician validation.

Key Features

• 12-lead ECG with Glasgow interpretation algorithm
• 5-inch color touch screen for easy navigation
• Portable design with a weight of 1.48 kg and dimensions of 270x190x60 mm
• USB connectivity for easy data export
• Internal storage for up to 50 ECGs
• Battery operation for over 5 hours

Technical Specifications

• Input Impedance 100MΩ
• Bandwidth 0.05-300 Hz
• Sampling Rate 24 bit, 32000 samples/second/channel
• Output Data Resolution 1μV/LSB - 1000 samples/second/channel
• Defibrillation Protection AAMI/IEC standards

Application

Ideal for medical practices requiring portable and reliable ECG solutions.

About the Brand

Cardioline is renowned for its innovative ECG solutions, offering high-quality devices that integrate advanced technologies for accurate and efficient cardiac monitoring.
